Custom Membrane Switch Manufacturer & Supplier
Ensel designs and manufactures precision membrane switches and keypads for medical devices, industrial automation, food service equipment, and advanced OEM applications — built to your exact specifications.
- ISO 9001:2015 certified manufacturing
- 100% in-house electrical testing on every unit
- Manufactured in Mexico · Warehoused in Houston, TX
- Custom design support from our engineering team
Overview
What Is a Membrane Switch?
A membrane switch is a low-profile, flexible interface that uses conductive layers separated by a spacer to complete an electrical circuit when pressure is applied. Unlike mechanical switches, membrane switches have no moving parts — making them highly resistant to dust, moisture, and chemical exposure.
The typical construction consists of a graphic overlay (polycarbonate or polyester), an adhesive spacer, a circuit layer with silver or copper conductive traces, and a rear adhesive for mounting. Optional layers include backlighting (LED or EL), EMI shielding, and stiffener plates.
Ensel has manufactured custom membrane switches for over 25 years, serving industries from medical diagnostics to industrial control — each built to the exact specifications of our OEM customers.
Technical Specs
Standard Capabilities
| Parameter | Specification |
|---|---|
| Actuations | Up to 1,000,000 cycles |
| Operating Temperature | -40°C to +85°C |
| Backlighting Options | LED, EL panel, fiber optic |
| Connector Types | ZIF, PCB tail, peel-and-stick |
| Overlay Materials | Polycarbonate, Polyester (PET) |
| IP Rating | Up to IP67 (dust and water resistant) |
| Adhesive Options | 3M 467MP, 3M 468MP, custom |
| Circuit Types | Polyester silver ink, copper flex |
Custom specifications outside these ranges are available — contact our engineering team to discuss your requirements.
Product Gallery
Membrane Switches in Action

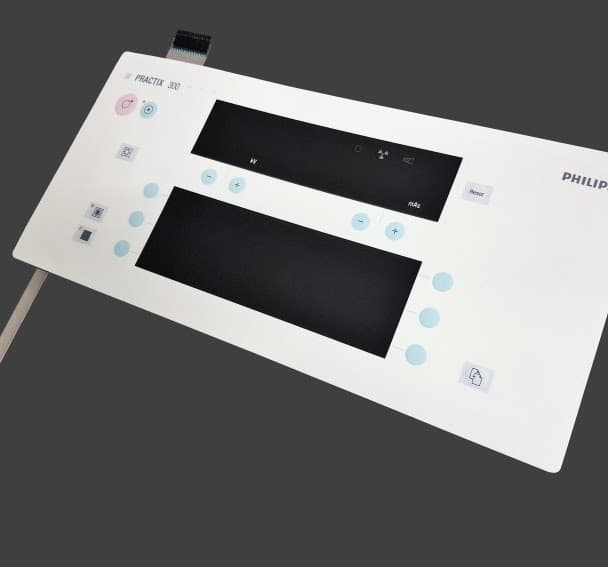

Medical Device Keypad

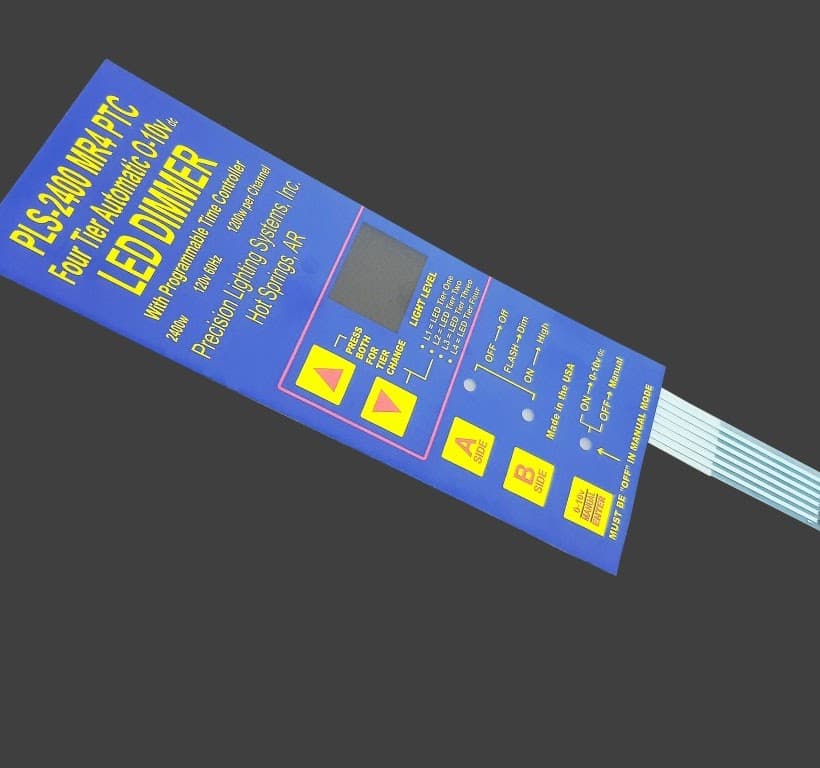

Industrial Control Panel

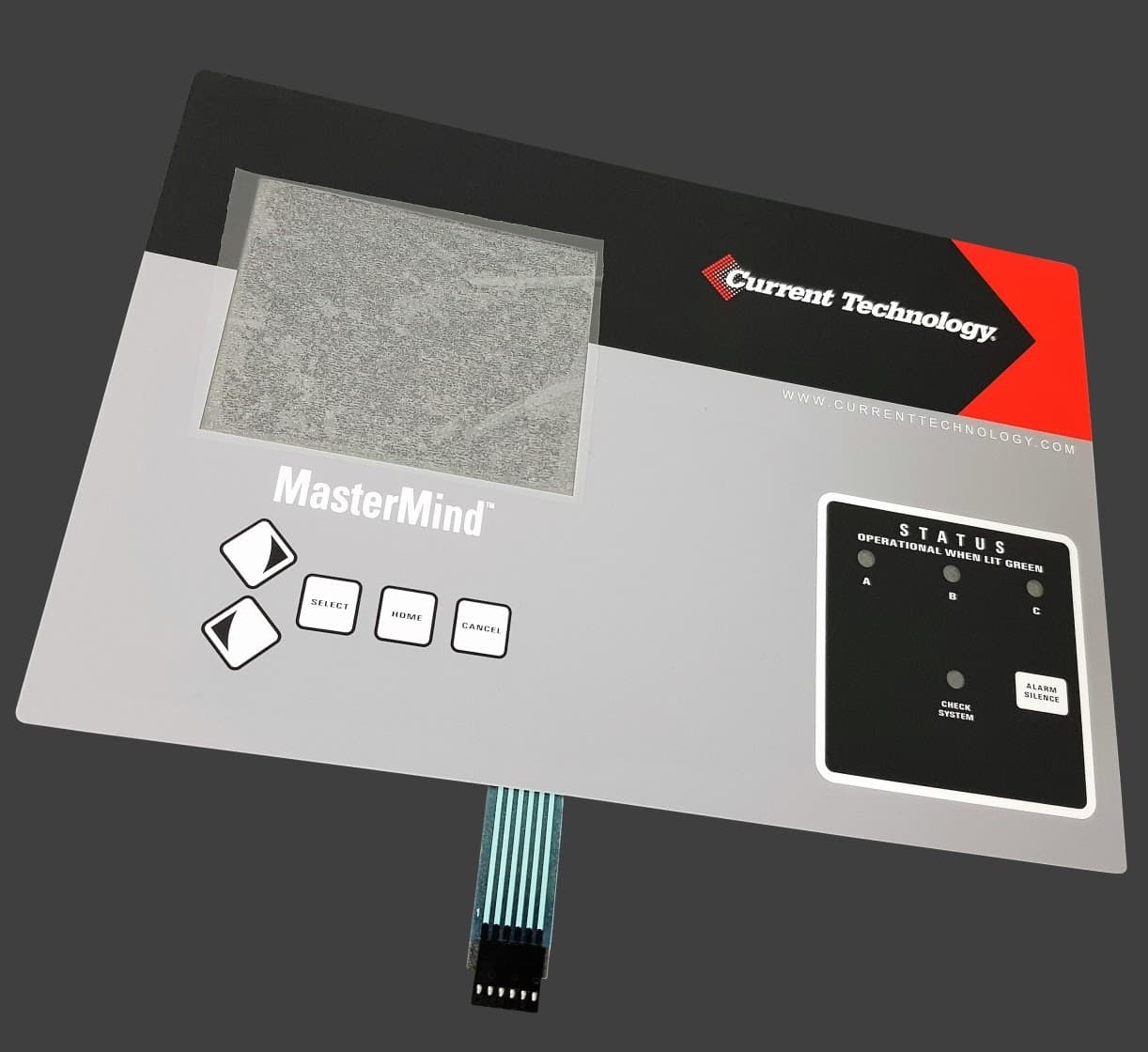

Alarm & Monitoring Systems

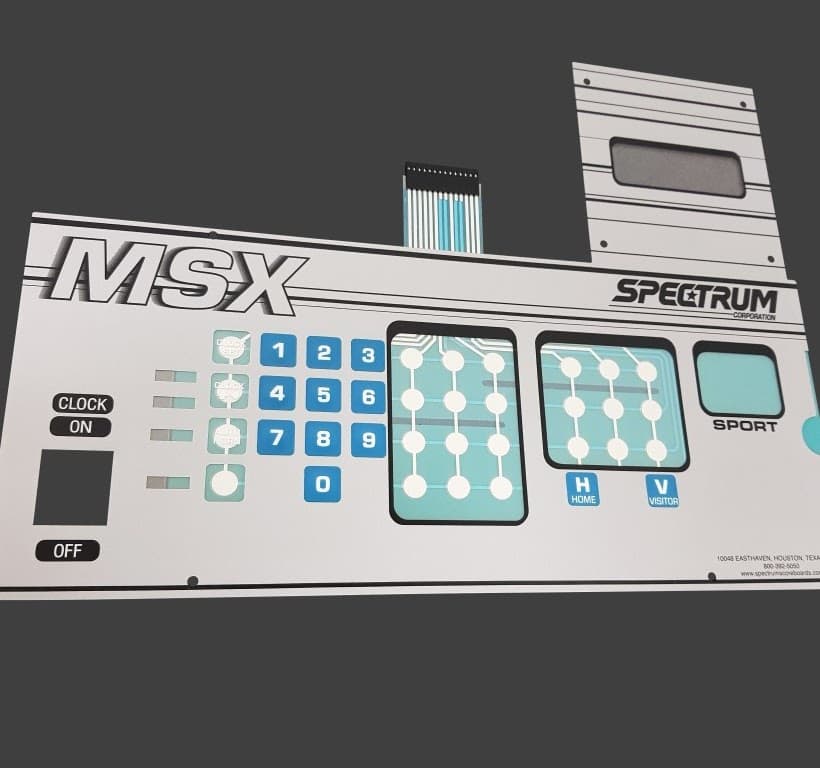

Consumer Appliance Switch
Our Process
How We Build Your Switch
Design & Engineering Review
DFM review, layer stack-up planning, and material selection for your specific application and environment.
Screen & Digital Printing
UV-cured inks with Pantone-matched colors and precise registration across all graphic layers.
Die Cutting & Lamination
Precision laser and rotary die cutting with automated lamination for consistent adhesive coverage.
100% In-House Testing
Every unit undergoes electrical continuity, actuation force, and visual inspection before shipment.
Applications
Membrane Switches for Every Industry
FAQ
Frequently Asked Questions
What is the minimum order quantity for custom membrane switches?
We work with customers at various volume levels. While higher volumes offer better unit economics, we regularly produce smaller prototype and pilot runs. Contact us to discuss your specific quantity requirements.
How long does it take to manufacture a custom membrane keypad?
Lead times vary by complexity and quantity. Standard production runs typically take 4–6 weeks from approved artwork. Expedited options are available. We maintain a Houston warehouse for faster US delivery.
Can you match our existing design or do you need CAD files?
We can work from CAD files, physical samples, or detailed drawings. Our engineering team handles the translation to production-ready files and will send a DXF and PDF proof before production begins.
What certifications do your membrane switches comply with?
Our manufacturing facility is ISO 9001:2015 certified. We can produce switches designed to meet UL, CE, RoHS, and application-specific standards. Medical-grade builds follow relevant IEC and FDA guidance.
Do you offer ESD protection for industrial applications?
Yes. We offer ESD-safe overlays, shielding layers, and static-dissipative materials for membrane switches used in sensitive electronic environments.
Need a custom membrane switch?
Our engineers will review your requirements and respond within 24 hours. No minimum commitment required to request a quote.
Get a Free Quote →
